Electromagnetic Effects and Threats

Anechoic Chamber

Convertible in Semi-Anechoic Chamber (SAC), Fully Anechoic Chamber (FAC) and Antenna Measurement Chamber

  • Frequency range: 10 kHz – 18 GHz
  • Inside dimensions (l x w x h): 7.5 x 3.0 x 3.0 m³
  • Test volume: 1.5 x 1.5 x 1.5 m³
  • FAC-3, Full Compliant with a measuring distance of 3.0 m
  • SAC, Pre Compliant with reduced height scan, measuring distance of 3.0 m
  • Antenna measurement chamber, measuring distance of min. 1.0 m, max. 3.0 m



Application area:

  • Measurement of linear transfer functions
  • EMC immunity tests: 80MHz to 18 GHz up to 100 V/m
  • HPM- and HIRF immunity tests between 150 MHz – 18 GHz up to 2 kV/m
  • EMC emission tests up to 18 GHz
Absorberhalle

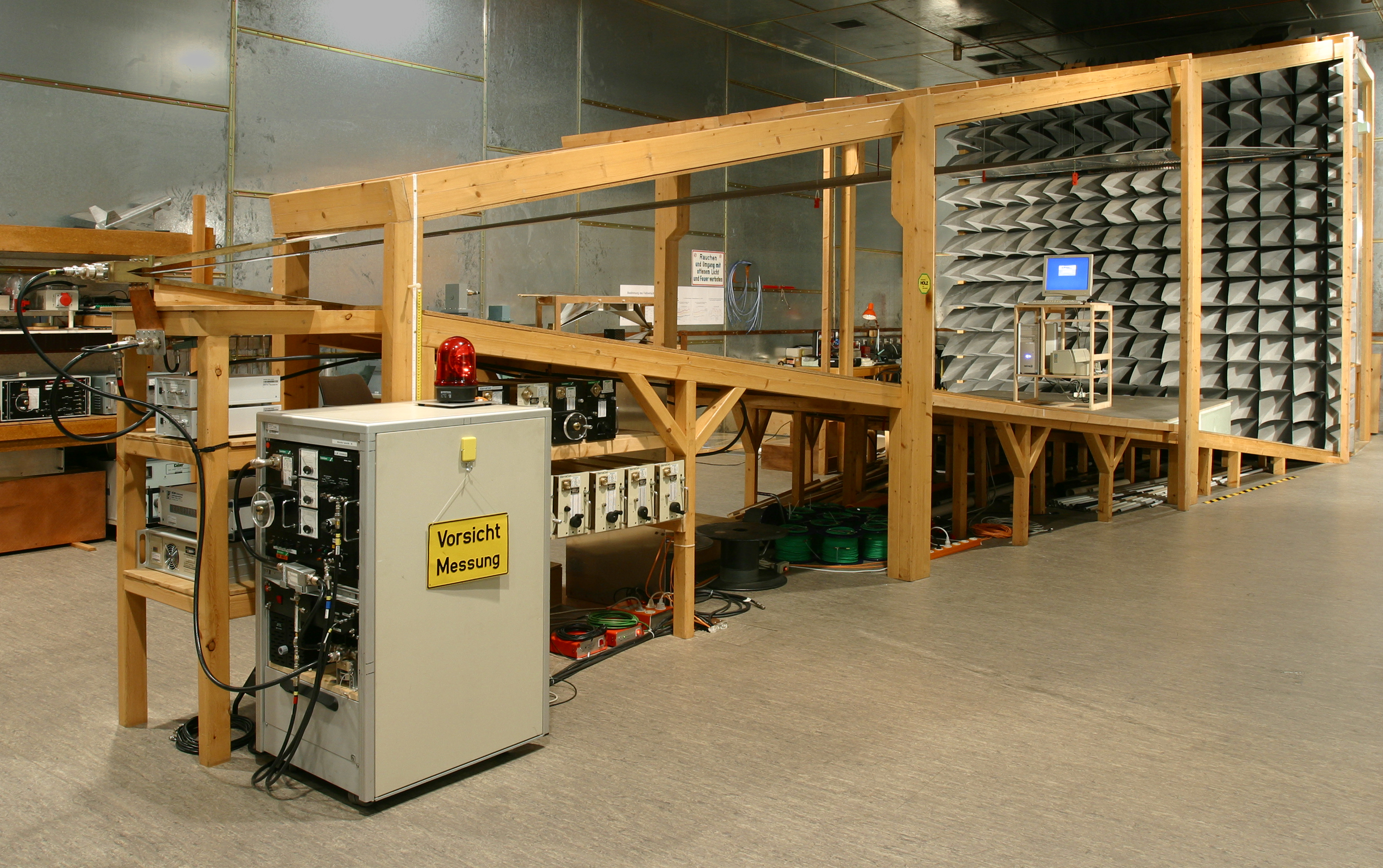

Large TEM Waveguide

  • Test volume: available cross section up to ca 3m x 3m at 9m distance from the input port
  • Frequency range: 0.01 – 8000 MHz

Application area:

  • Measurement of linear transfer functions
  • EMC immunity tests up to 100 V/m
  • HPM immunity tests between 150 MHz – 3.4 GHz up to 2.5 kV/m
  • HPM immunity tests between 4 – 8 GHz up to 1 kV/m
  • UWB immunity tests 120ps/2ns up to 12 kV/m
  • EMC emission tests

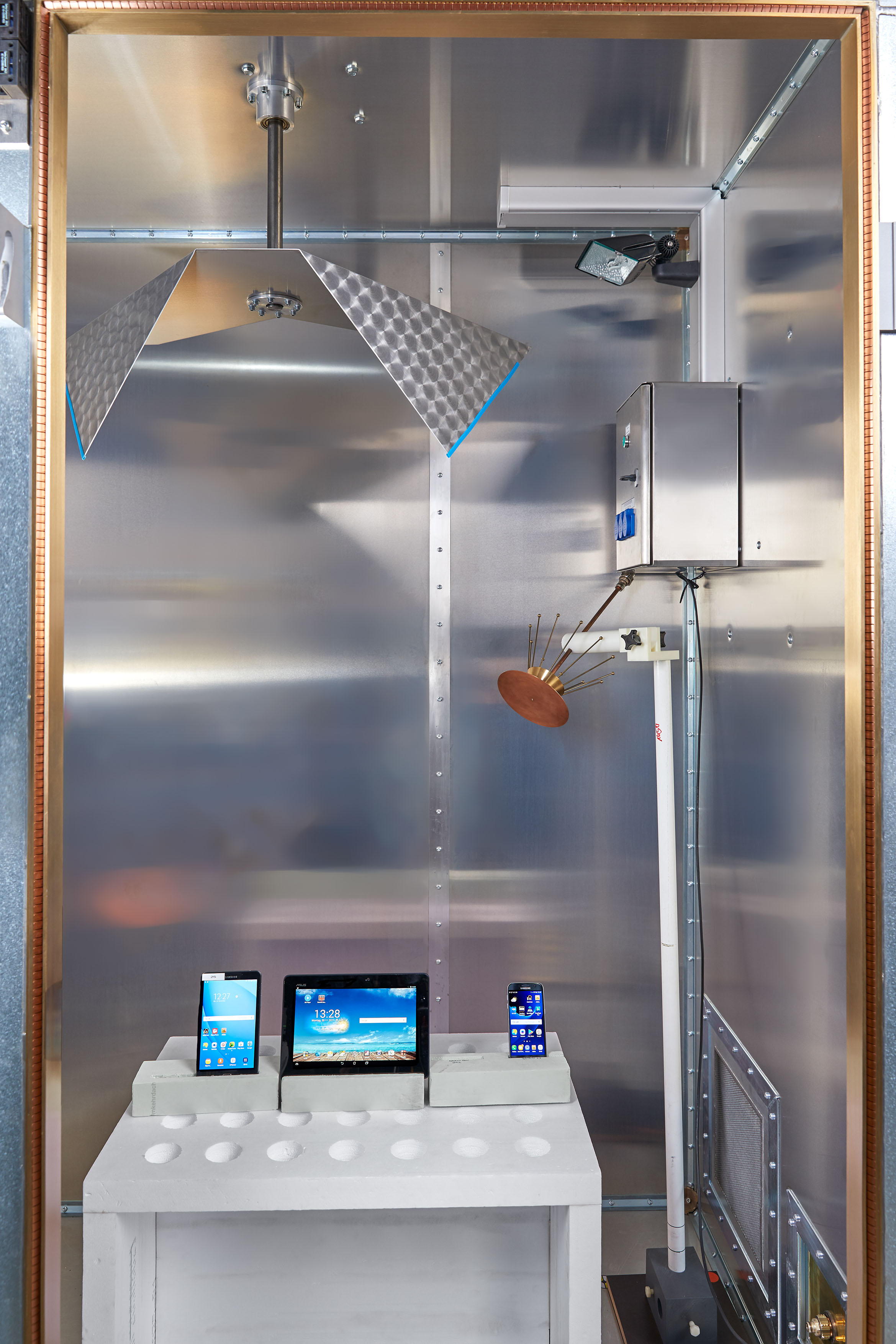

Reverberation chamber

  • Test volume: 1 x 0.7 x 1.25 m3
  • Frequency range: 0.52 - 18 GHz

Application area:

  • EMC immunity tests between 18 GHz up to 2 kV/m
  • HPM immunity tests between 520 MHz – 3.4 GHz up to 20 kV/m
  • HPM immunity tests between 4 – 18 GHz up to 10 kV/m
Modenverwirbelungskammer

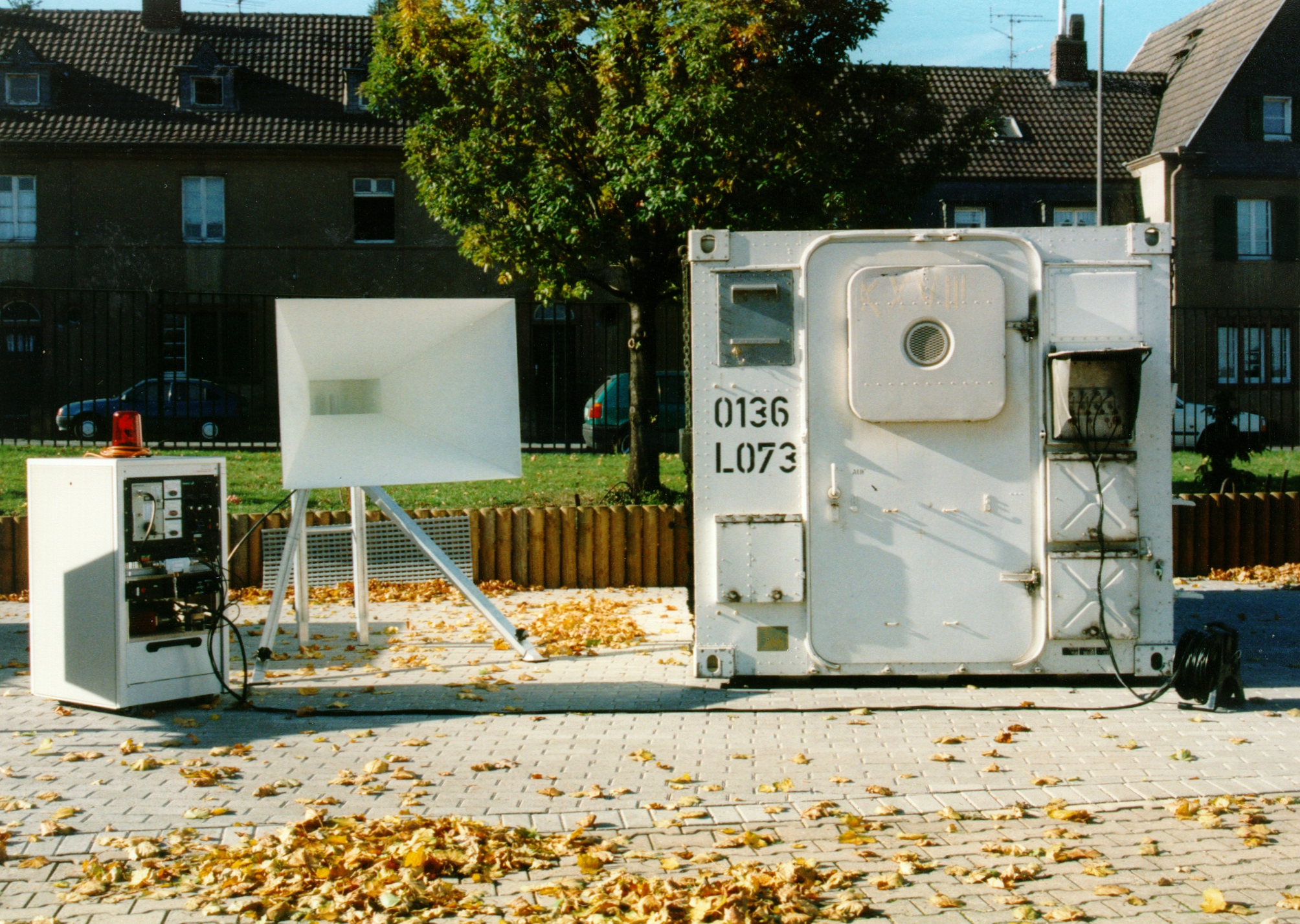

Mobile HPM radiation facility

  • Test area: 0.9 x 1.2 m2
  • Frequency range: 450 MHz – 3.4 GHz

Application area:

  • HPM immunity tests at remote locations: up to 5 kV/m at 1m distance from the antenna

BCI-measurement setup (Bulk Current Injection)

  • Laboratory equipment for bulk current injection (BCI) and emission tests between 10 kHz - 1 GHz, up to 3 A
  • BCI measuring station for conducted emission measurements between 10 MHz - 3 GHz
